WELDLESS CONNECTOR
- REDUCING RISK
- MAXIMIZING UPTIME
- INCREASING COST CONTROL
Efficient. Reliable. No welding. 1-48".
No special tools needed for installation or pressuretesting
STATS DNV Type Approved mechanical pipe connectors provide a cold-work solution, removing the associated risks of welding. Quick and efficient to install, this permanent solution significantly reduces maintenance duration and provides a cost-effective solution for piping repair, tie-in or capping of redundant pipework.
Once installed the integrity of the Connector can be verified with a simple pressure test. An integrated seal verification port provides access to the annulus void between the seals allowing a leak-test to be carried out.
A double block and bleed valve can be fitted to the seal verification port to provide a means of periodically monitoring the integrity of the connection, as part of a routine maintenance or inspection programme. Mechanical connectors have been fitted to a variety of piping systems with a 100% leak-free service history.
Connector Configurations

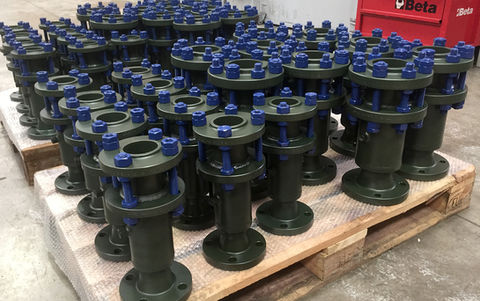

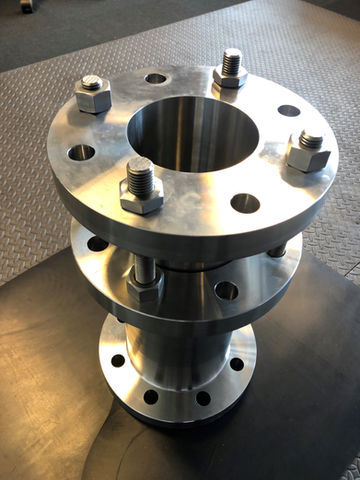

Flanged outlet for connecting plain-end pipe to a pre-flanged termination
Coupling for connecting plain-end pipe to plain-end pipe
End Cap for capping plain-end redundant pipe work
Connectors are suitable for topside, terminal, FPSO or subsea installation and compatible with processed water, air systems and hydrocarbon applications. Available to suit a wide range of pipe materials including carbon steel, SS316, 22Cr duplex and 6Mo (titan study ongoing).
OPERATOR BENEFIT
No hot-work required, significantly reducing associated risk and costs
Quick to install resulting in timely completion of maintenance activities
Easily installed and commissioned with only basic pipework preparation
Significantly reduces maintenance costs and duration by eliminating the need for welding, associated equipment and personnel
External grip assembly applies even linear and circumferential load around the host pipe, eliminating localised material deformity and localised stress fractures
External lock and seal assembly eliminates flow restriction or turbulence
Removable and reusable with no damage to existing pipework
MECHANICAL CONNECTOR KEY FEATURES
Simple standard bolted installation, no specialist tools required
Maintenance free mechanical pipe connection in accordance with API Specification 6H and certified fire-safe to API 6FA
Seal verification port can be fitted with a DBB valve to comply with specific operator inspection requirements
Robust construction provides equivalent or greater design criteria than host pipework
Coating provided to client specification
Fabricated design provides a lightweight unit for topside applications
MECHANICAL CONNECTOR SPECIFICATIONS
Sizes 1” to 36” as standard, sizes out with this range available on request
Maximum working pressure: up to ASME 300# (50 bar / 725 psi) as standard, up to ASME 2500# (256 bar / 3713 psi) available on request*
Temperature range: -200°C to 650°C
Dual graphite seal arrangement with verification port to enable pre-commission leak-test/pressuretest
Minimum design life 20 years
