LOW PRESSURE PLUGS

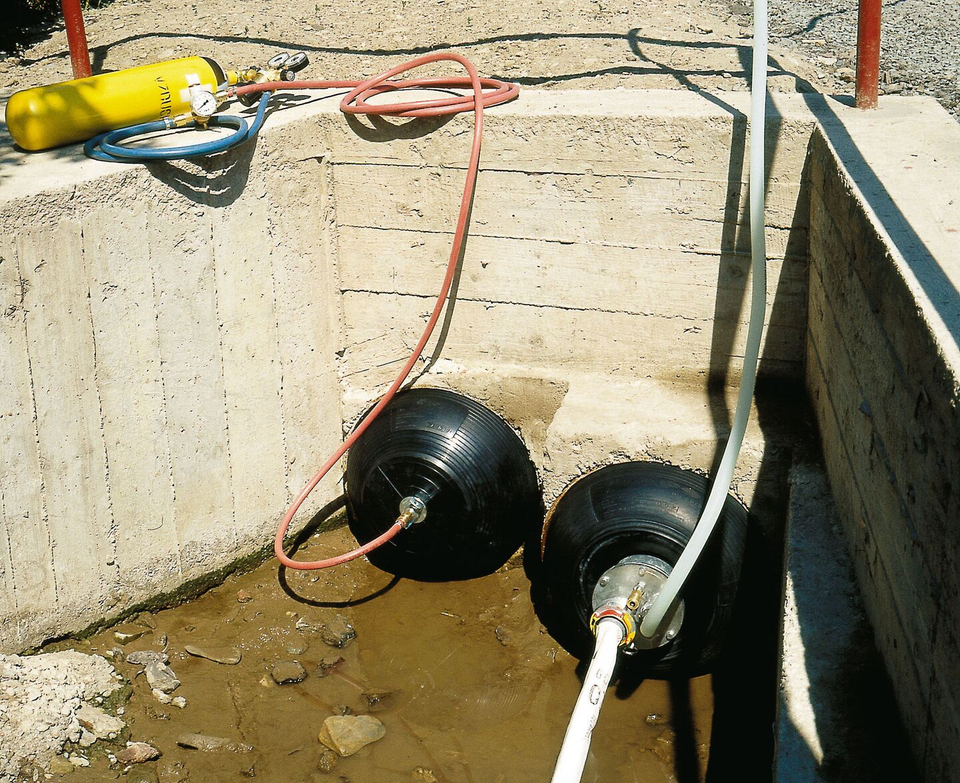

These flexible reinforced rubber plugs span large differences in diameter, so each model could be used on different pipes. They are easy to operate, and can withstand up to 2 bars back pressure. The plugs can be delivered with bypass to pump fluid through them or let fluid flow through them while installed. There are also choices for special materials if needed to withstand oil or other chemicals. As standard, we deliver these in sizes ranging from 20mm-1600mm.

Low pressure plugs: Services

BENEFITS

  • Simple, safe and quick isolation of pipes

  • Can be used for pressure testing or letting fluid flow controlled from the pipe

  • Simple handling

PROPERTIES

  • Activated with air (1-2,5 bar)

  • Can be used in a wide range of temperatures

  • Special plugs for oil and chemicals

  • Short plugs for pipes where there is no room for standard plugs

  • Flexible for ease of transport, storage and installation in pipes

  • Installed by hand or with light equipment

Low pressure plugs: List

Specifications plugs with bypass

Low pressure plugs: Image

Specifications short plugs with bypass

data kort.png
Low pressure plugs: Image
